Python editor

The PyEditor is a core plugin.

Warning

Work on the Python editor is in its early stages. We have made it available in this version of PyScript to give the community an opportunity to play, experiment and provide feedback.

Future versions of PyScript will include a more refined, robust and perhaps differently behaving version of the Python editor.

If you specify the type of a <script> tag as either py-editor (for Pyodide) or mpy-editor (for MicroPython), the plugin creates a visual code editor, with code highlighting and a "run" button to execute the editable code contained therein in a non-blocking worker.

The interpreter is not loaded onto the page until the run button is clicked. By default each editor has its own independent instance of the specified interpreter:

Two editors, one with Pyodide, the other with MicroPython.
<script type="py-editor">
  import sys
  print(sys.version)
</script>
<script type="mpy-editor">
  import sys
  print(sys.version)
  a = 42
  print(a)
</script>

However, different editors can share the same interpreter if they share the same env attribute value.

Two editors sharing the same MicroPython environment.
<script type="mpy-editor" env="shared">
  if not 'a' in globals():
    a = 1
  else:
    a += 1
  print(a)
</script>
<script type="mpy-editor" env="shared">
  # doubled a
  print(a * 2)
</script>

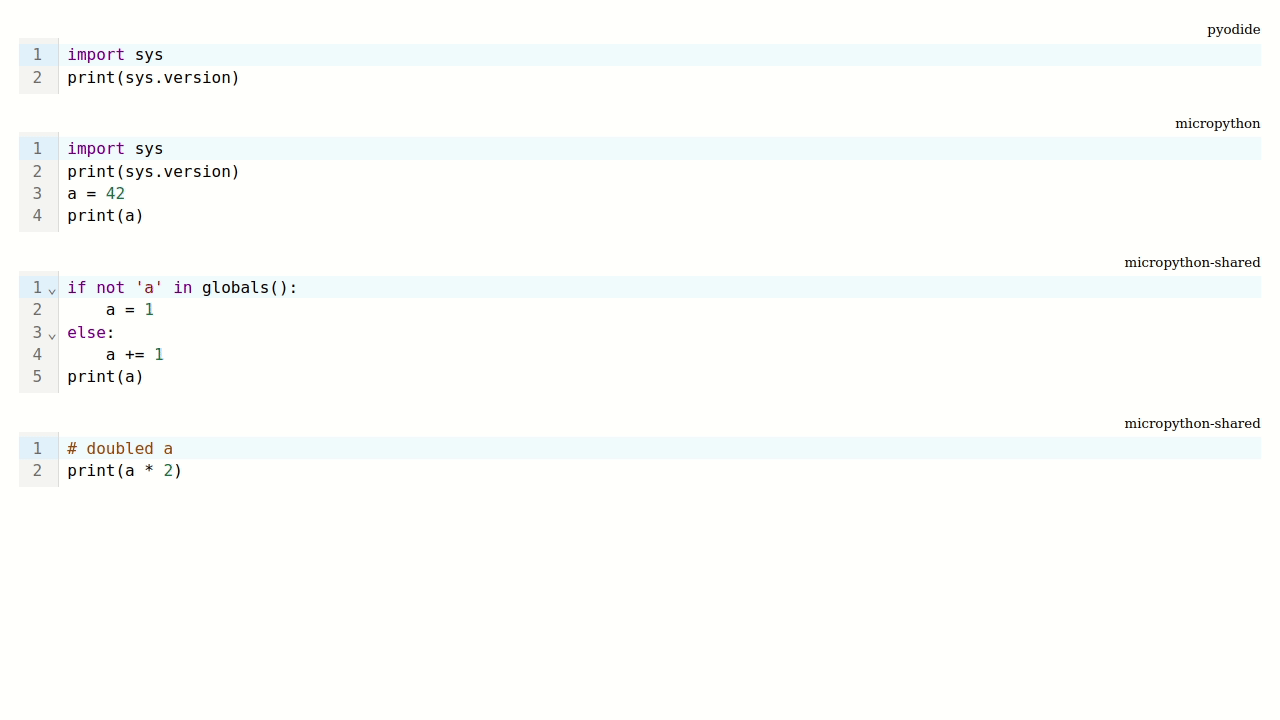

The outcome of these code fragments should look something like this:

Sometimes you need to create a pre-baked Pythonic context for a shared environment used by an editor. This need is especially helpful in educational situations where boilerplate code can be run, with just the important salient code available in the editor.

To achieve this end use the setup attribute within a script tag. The content of this editor will not be shown, but will bootstrap the referenced environment automatically before any following editor within the same environment is evaluated.

Bootstrapping an environment with `setup`
<script type="mpy-editor" env="test_env" setup>
# This code will not be visible, but will run before the next editor's code is
# evaluated.
a = 1
</script>

<script type="mpy-editor" env="test_env">
# Without the "setup" attribute, this editor is visible. Because it is using
# the same env as the previous "setup" editor, the previous editor's code is
# always evaluated first.
print(a)
</script>

Info

Notice that the interpreter type, and optional environment name is shown at the top right above the Python editor.

Hovering over the Python editor reveals the "run" button.

Finally, the target attribute allows you to specify a node into which the editor will be rendered:

Specify a target for the Python editor.
<script type="mpy-editor" target="editor">
  import sys
  print(sys.version)
</script>
<div id="editor"></div> <!-- will eventually contain the Python editor -->

Editor VS Terminal

The main difference between these two core plugins is that a py-editor, or mpy-editor, is a custom orchestration a part and editors run in workers by default, mostly to prevent accidental blocking evaluation that could otherwise freeze the main thread UI (infinite loops or similar deadlocks).

Because an editor is detached from the regular orchestration that happens with just py or mpy scripts, one should not expect the same behavior regular PyScript elements follow, most notably:

  • the whole editor is based on CodeMirror and not on XTerm.js as it is for the terminal
  • the code is evaluated all at once and always async when the Run button is pressed, not per each line
  • the editor has listeners for Ctrl-Enter, or Cmd-Enter, plus Shift-Enter to shortcut the execution of the code. These shortcuts make no sense in the terminal as each line matters
  • there is a clear separation of the input and the resulting output
  • simple to complex programs can be written without executing
  • there is no special reference to the underlying editor instance, while there is both script.terminal or __terminal__ in the terminal case

Still missing

As mentioned at the top of this section, the PyEditor is currently under further development and refinement, and it might land also as explicit custom element such as <py-editor> or <mpy-editor>, somehow simplifying the bootstrap through its content-aware element nature but right now these variants are not supported.

Last, but not least, we currently don't have a mechanism to destroy a terminal or kill its execution from the worker so in case of infinite loops, the easy way out is to refresh the current page so that previous worker would get killed. We will eventually provide an easier way to kill and start fresh in the future.
